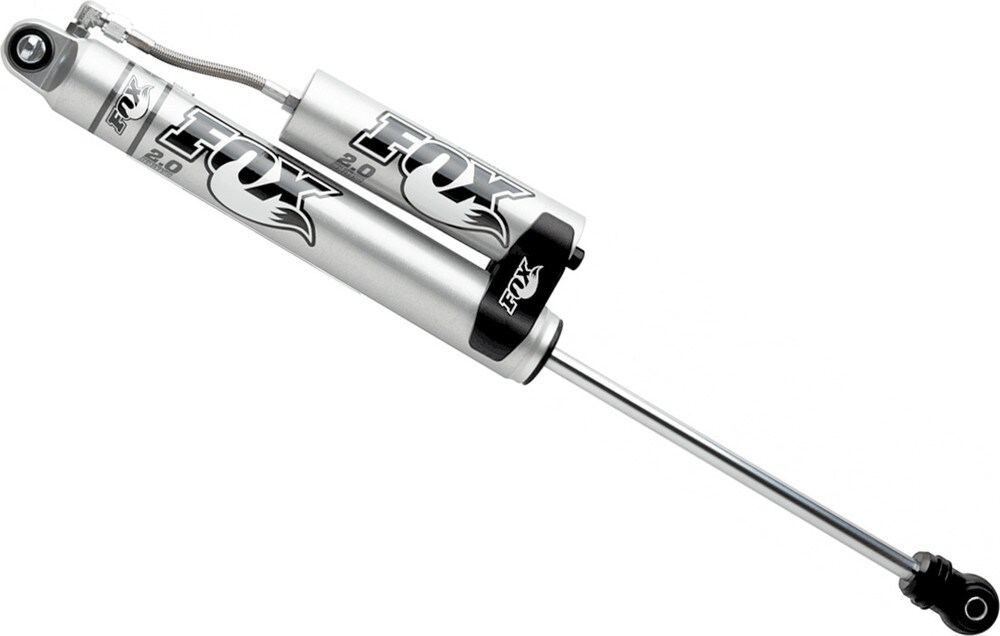

RJ-135401-1 - Fox Performance Series 2 in. Reservoir (JK Rear for RJ Lifts)

Fox 2.0 Performance Series Reservoir Smooth Body Rear Shocks for use with RockJock JK suspension systems deliver Fox's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.
Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Shocks Fit:

• JK Wrangler Unlimited (4-door) – All Models (w/ RockJock Lift)
• JK Wrangler (2-door) – All Models (w/ RockJock Lift)

Travel Specs.:

• Extended  =  28.450 in.
• Compressed  =  16.850 in.
• Travel  =  11.600 in.

Notes:

• Bushings  =  Nitrile rubber
• Construction  =  Body and ends are CNC machined 6061-T6 billet aluminum (shaft see below)
• Finish  =  Body is finished in clear anodize, ends are finished in black anodize
• Lift  =  We only carry Fox Shocks that are compatible with our (4 in. lift) suspension kits
• Shaft  =  5/8 in. hard chrome plated heat-treated alloy steel
• Sold as  =  Each

Media Hub

• Installation Instruction Manual:  RJ-135401-1 Shocks
• Exploded View Diagram:  RJ-135401-1 Shocks
