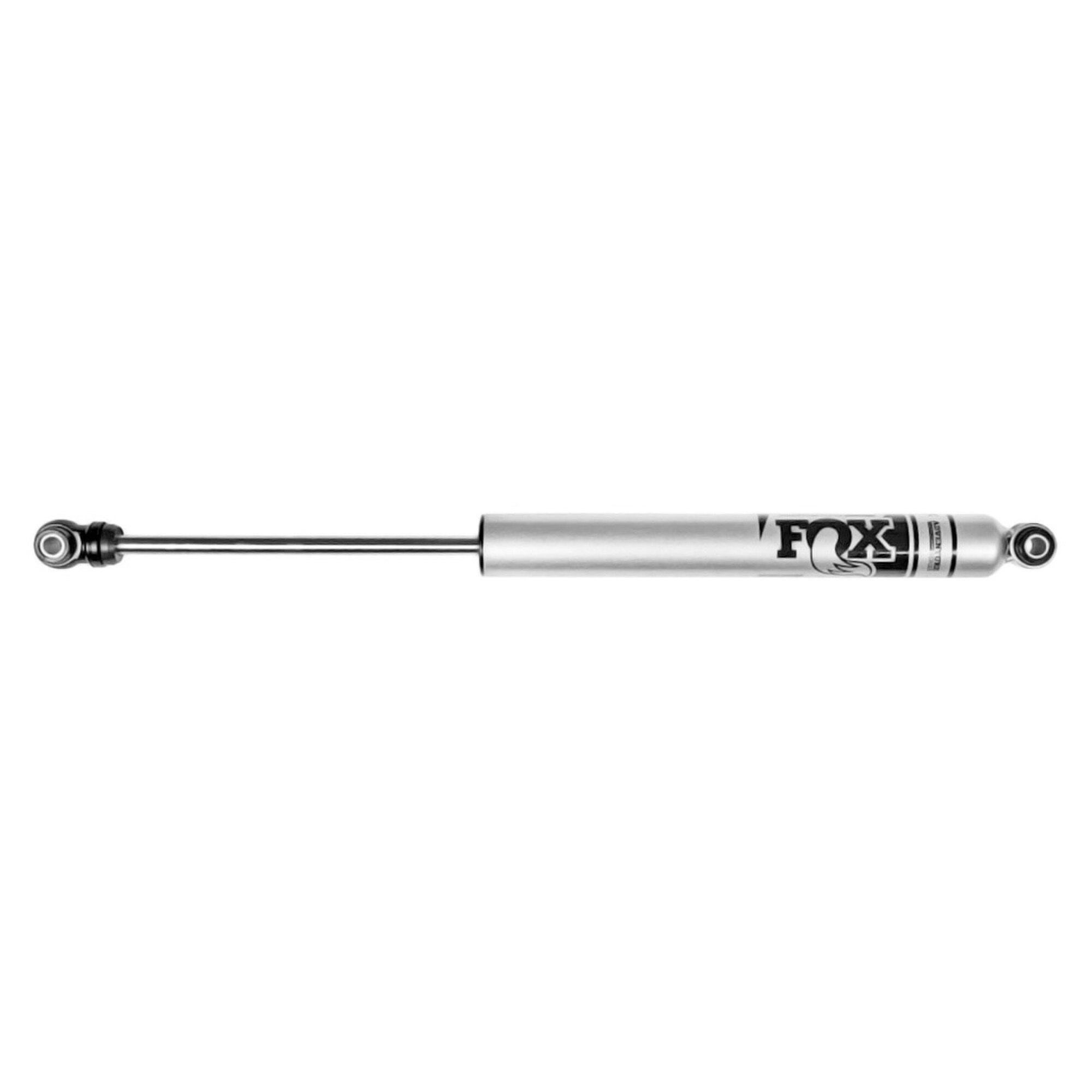

Fox 2.0 Performance Series IFP Smooth Body Rear Shock for use with RockJock's XJ Cherokee suspension system contain the latest in shock technology to transform the performance of your XJ. They use Fox’s race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find Fox’s race-proven performance valving technology. An Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the 2.0 Performance Series IFP shock a predicable ride quality capable of handling the roughest road conditions.

Shock Fits:

• XJ Cherokee – All Models (w/ RockJock Lift)

Travel Specs.:

• Extended  -  26.350 in.
• Compressed  -  16.750 in.
• Travel  -  9.600 in.

Notes:

• Bushings  -  Nitrile rubber
• Construction  -  Body and ends are CNC machined 6061-T6 billet aluminum (shaft see below)
• Shaft - 5/8 in. hard chrome plated heat-treated alloy steel
• Lift  -  We only carry Fox shocks that are compatible with our (3.5 in. lift) suspension kit
• Brake Hoses  -  Long travel shocks may overextend your brake hoses! Always cycle your suspension before operating your vehicle!
• Finish  -  Body is finished in clear anodize, ends are finished in black anodize
• Sold as  -  Each

Instruction Manual:

• RJ-115400-1 Shock

Exploded View Diagram:

• RJ-115400-1 Shock
