CE-ACOSR - TJ/LJ ACOS Rear Adjustable Coil Spring Spacers

SKU CE-ACOSR
$277.00

Details

ACOS Rear Adjustable Coil Spacers enable you to dial in the ride height on your TJ or LJ. The range of ride height adjustment is from 2 in. to 3 3/8 in. - without taking apart suspension components!
ACOS adjustable coil spring spacers compensate for uneven load distribution and spring settling. They can save you from having to replace coil springs as you add equipment weight.
The high-tech, billet design looks great, too. Dura-Thane isolators prevent noise transfer.


Kit Fits:

  • TJ Wrangler
  • TJ Wrangler Unlimited (LJ)

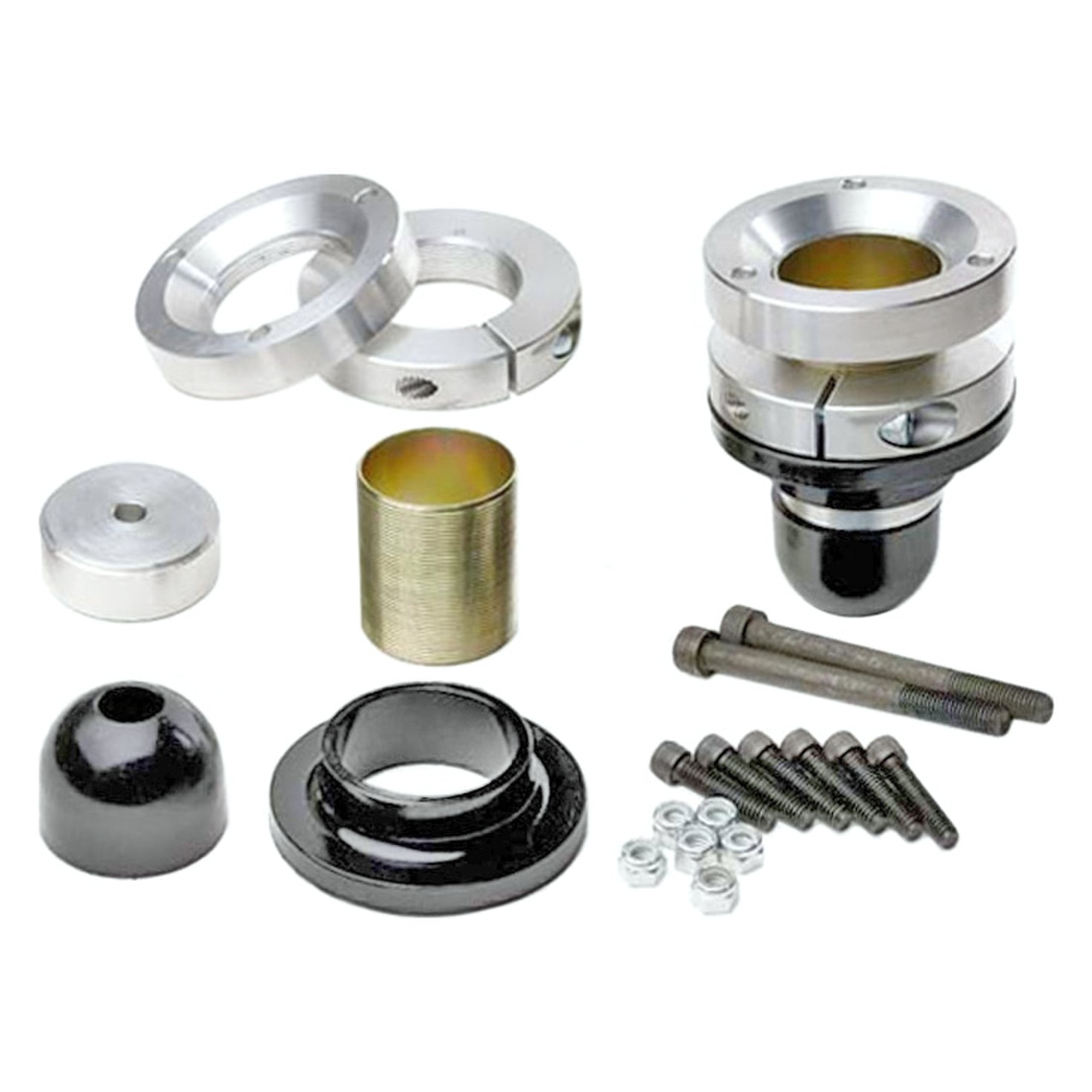

Kit Includes:

  • (2) Transfer Rings
  • (2) Adjuster Rings
  • (2) Threaded Tubes (gold)
  • (2) Isolator Pads
  • (2) Bump Stop Supports
  • (2) Bump Stops
  • (2) 10mm x 110mm Socket Head Allen Bolts
  • (6) 5/16 in. x 1 3/8 in. Socket Head Allen Bolts
  • 5/16 in. Nyloc Nuts

Adjustment Range:

  • Closed – 2 in.) (note: merely installing on your vehicle immediately lifts it 2 in.
  • Extended – 3 3/8 in. (maximum lift over stock)

Notes:

  • Fits stock rear upper bump stop frame mount on TJ and LJ vehicles
  • Adjustable height design adapts to your vehicle and future modifications
  • Technically advanced design and billet construction dramatically enhances suspension appearance
  • Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability
  • Most vehicles require additional parts or modifications to accommodate the immediate increase in ride height (trac bar adjustments, etc.)
