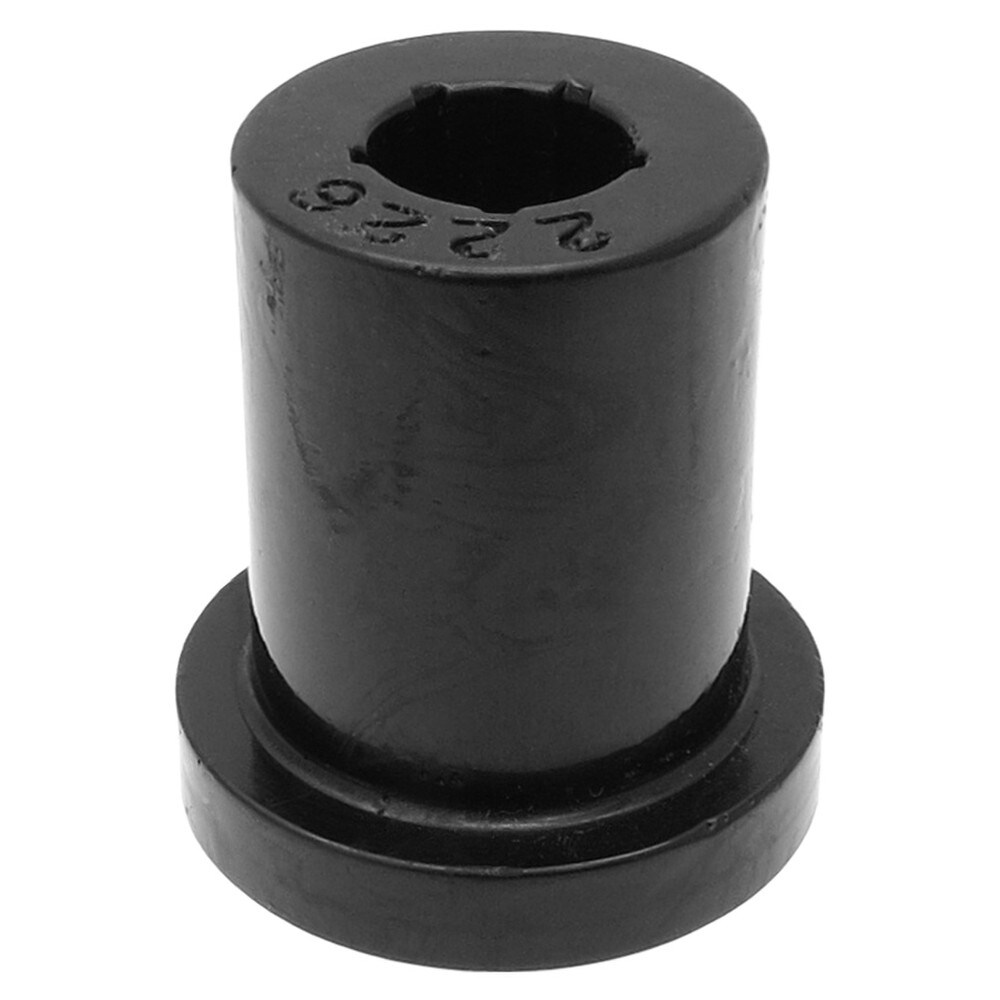

This RockJock Urethane Bushing Half is found in all of our CJ rear shackles and is used in conjunction with stock CJ springs or aftermarket springs that retain factory the bushing dimensions.
Bushings are made from Energy Suspension’s secret recipe of urethane for maximum durability. Fluted grooves in the internal bores of the bushings fill with grease when used in conjunction with our greasable bolts. The fluted, greasable design ensures smooth, quiet operation.

Kit Fits:

• CJ-5 (rear)
• CJ-7 (rear)
• CJ-8 (rear)
• Universal Application (2 1/2 in. wide springs w/ 1 in. I.D. spring eyes)

Kit Includes:

• (1)  Urethane Shackle Bushing Half

Applicable Springs:

• CJ factory rear leaf springs
• CJ aftermarket rear leaf springs (that retain factory spring eye specs.)
• Any 2 1/2 in. wide leaf spring with a 1 in. spring eye bore

Components Specs.:

• Bushing Surface Height  =  1.188 in.
• Bushing Surface O.D.  =  1 in.
• Bushing Flange Thickness  =  .250 in.
• Bushing Flange O.D.  =  1 3/8 in.
• Bushing Thru-Hole  =  .500 in.

Notes:

• This bushing is intended to be a replacement for the bushing in any of our Jeep CJ greasable rear shackles, when used with springs that feature the stock I.D. spring eye specs.
• This bushing can be used as a replacement in a completely stock CJ application – as opposed to replacing factory bushings with rubber
• May be used as a replacement in any, universal application where the leaf spring is 2 1/2 in. wide and features a 1 in. I.D. spring eye.
