  • RJ-305301-102 - Johnny Joint 2 in. Narrow Rod End, Bent Long Shank (TJ/LJ/XJ/MJ/ZJ Front Trac Bar, 1 in. RH Thread, 1.600 in. x .510 in. Ball)

RJ-305301-102 - Johnny Joint 2 in. Narrow Rod End, Bent Long Shank (TJ/LJ/XJ/MJ/ZJ Front Trac Bar, 1 in. RH Thread, 1.600 in. x .510 in. Ball)

SKU RJ-305301-102
$142.00
Back

Details

RockJock's Johnny Joint Rod Ends have been a staple in the off road industry since 1996! Available universally for builders or found in our RockJock suspension components, John Currie’s proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use.
Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.
Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.
All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

This 2 in. Johnny Joint incorporates our 1 in.-14 RH thread, narrow width, long shank, forged 4140 chromoly body and a 1.600 in. overall width x .510 in. thru-bolt hole pivot ball.

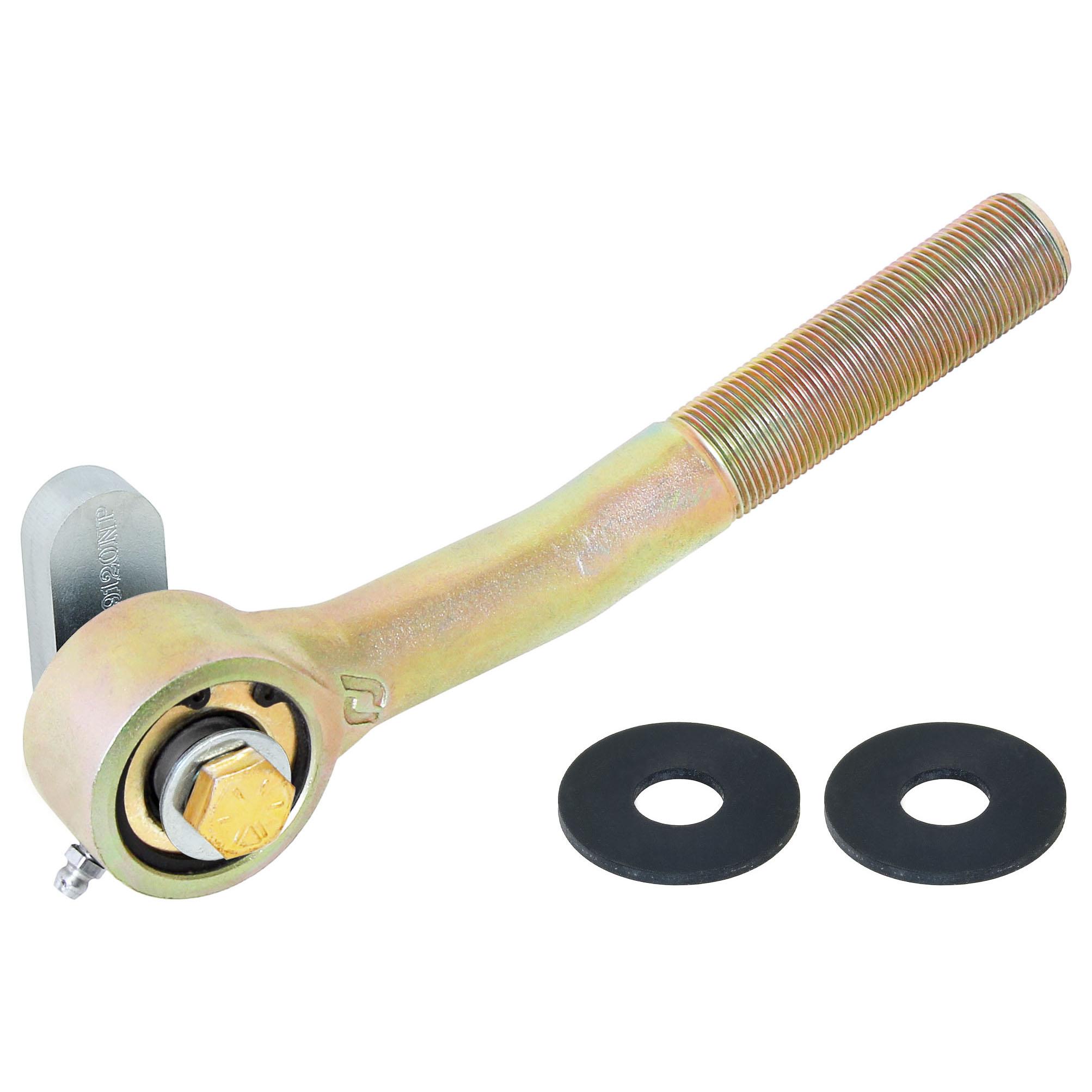

Features of the long shank design include the the jam nut being pushed outward, away from suspension brackets that the joint mounts in to provide more clearance and accessibility to the jam nut. Being that, in our applications, we use this specific joint in TJ, LJ, XJ, MJ and ZJ front trac bars, the shank portion of this joint features a 12 degree vertical bend (3 1/2 in. from the joint CL), as seen in the photo, making it specific to fitment in this application.
Greasing is handled externally, via the installed 1/4 in.-28 zerk fitting.



Rod End Fits:

  • Universal Application
  • TJ Wrangler – F trac bar (axle end)
  • TJ Wrangler Unlimited (LJ) – F trac bar (axle end)
  • XJ Cherokee – F trac bar (axle end)
  • MJ Comanche – F trac bar (axle end)
  • ZJ Grand Cherokee – F trac bar (axle end)


Rod End Includes:

  • (1) Forged Johnny Joint Assembly
  • (2) Rubber washers (fit outboard on both sides of the Johnny Joint to encourage the joint to re-center itself after articulating)
  • All required hardware for attaching the joint to the axle housing of a TJ, LJ, XJ, MJ or ZJ


Rod End Features:

  • 24 degrees of articulation capability
  • Forged 4140 chromoly construction
  • 2 in. O.D. x 1.20 in. wide joint outer barrel
  • 3 1/2 inches of 1 in.-14 RH Threads
  • 8.130 inches from CL of joint to end of threads
  • 12 degree vertical bend in the shank, 3 1/2 in. from the joint CL, to accommodate the CE-9120TJS trac bar application
  • 1-piece bushing internals

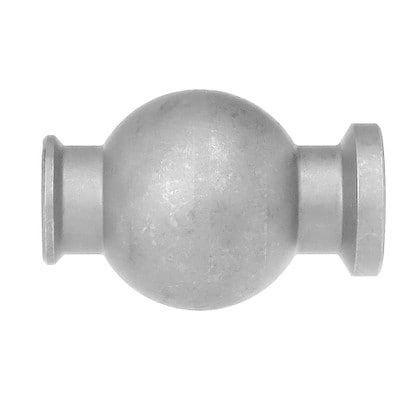

  • 1.600 in. wide x .510 in. thru-hole pivot ball
  • 1/4-28 in. zerk fitting for greasing
  • Fully assembled, ready for use right out of the box

Notes:

  • The long shank design pushes the jam nut outward, away from suspension brackets that the joint mounts in to provide more clearance and accessibility to the jam nut
  • The smooth shank area of the joint may have a bend applied to it in a press to angle the joint for a perfect fit in your application, or to gain clearance in tight spots
  • See CE-9113JN for a Jam Nut to fit this joint

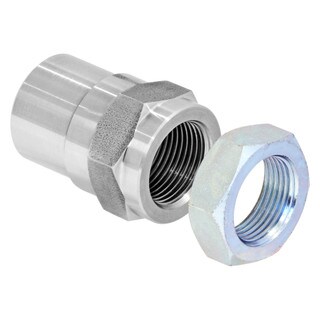

  • See CE-9113B if a Weld-In Bung and Jam Nut are required
  • See RJ-576201-101 if a RockNut is required
  • Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
  • Applicable Johnny Joint Tool for this Rod End: CE-9112T
  • *** IMPORTANT *** - joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!
