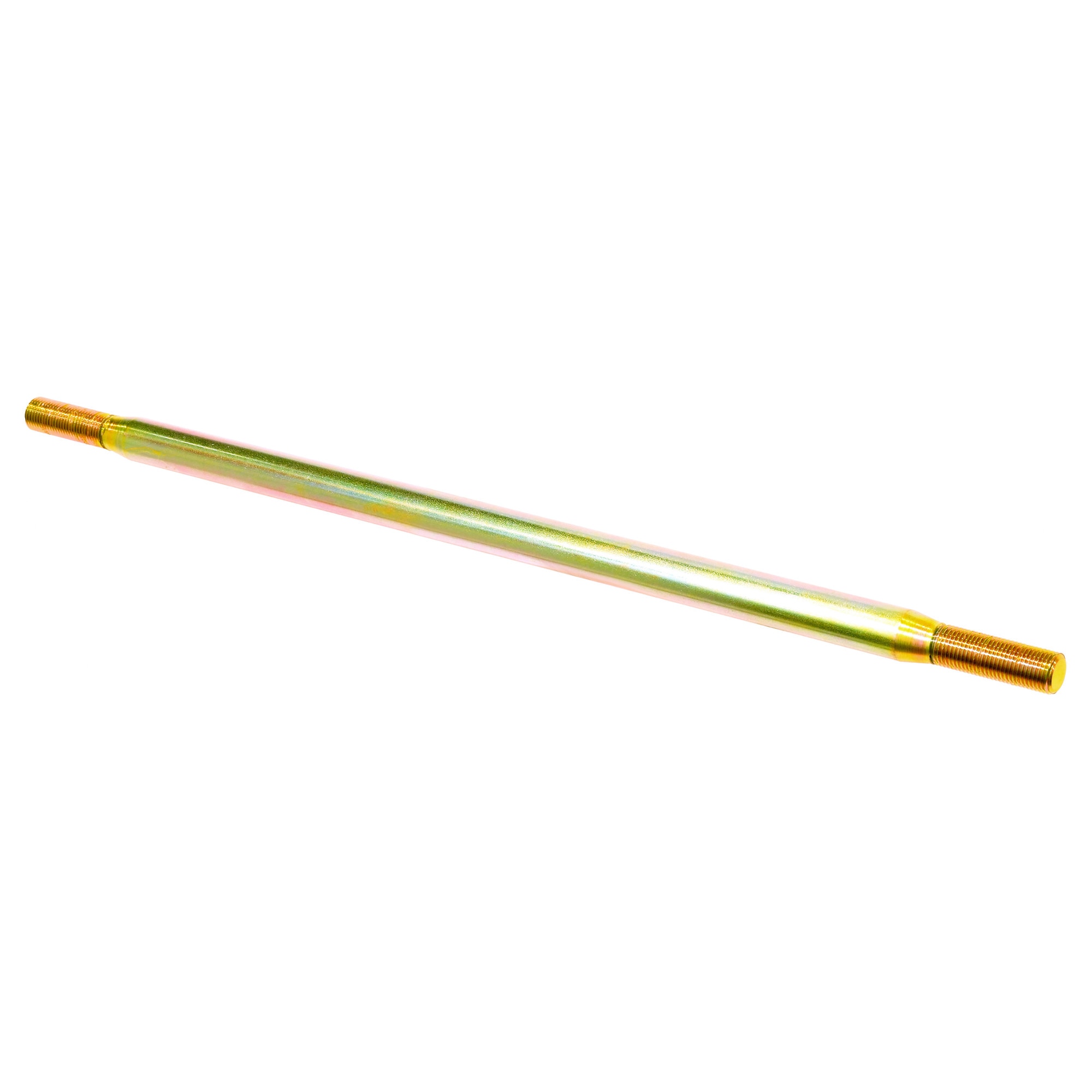

RJ-253200-1 - Antirock® Sway Bar End Link Rod (15 5/8")

15 5/8" long Antirock® sway bar end link threaded rod

  • 5/8" in diameter
  • Features 1/2"-20 RH and LH threads
  • Rod length may be trimmed to accommodate custom applications
  • These are the link rods that are included in our JT Gladiator rear Antirock® kits
  • Sold each
  • Thread and adjustment specs. shown below
SKU: RJ-253200-1
$39.00
PROP 65 WARNING:

Notes:

  • Rod features 1 1/2" of RH thread, 1 1/2" of LH thread and 12 5/8" of smooth area in the center
  • Rod with heims installed, screwed all the way on until they are bottomed out, is 17 3/8" C-C
  • Rod with heims installed will safely adjust out to 19 1/8" C-C
  • At maximum trimming of this rod (1/2" of thread left on each side, heims screwed on til they meet smooth area of the rod), C-C would be 17 1/8"

Notes:

  • Rod features 1 1/2" of RH thread, 1 1/2" of LH thread and 12 5/8" of smooth area in the center
  • Rod with heims installed, screwed all the way on until they are bottomed out, is 17 3/8" C-C
  • Rod with heims installed will safely adjust out to 19 1/8" C-C
  • At maximum trimming of this rod (1/2" of thread left on each side, heims screwed on til they meet smooth area of the rod), C-C would be 17 1/8"
