RJ-202007-103 - Antirock Sway Bar Fabricated Steel Arms (18 in. Long)

SKU RJ-202007-103
$142.00

Details

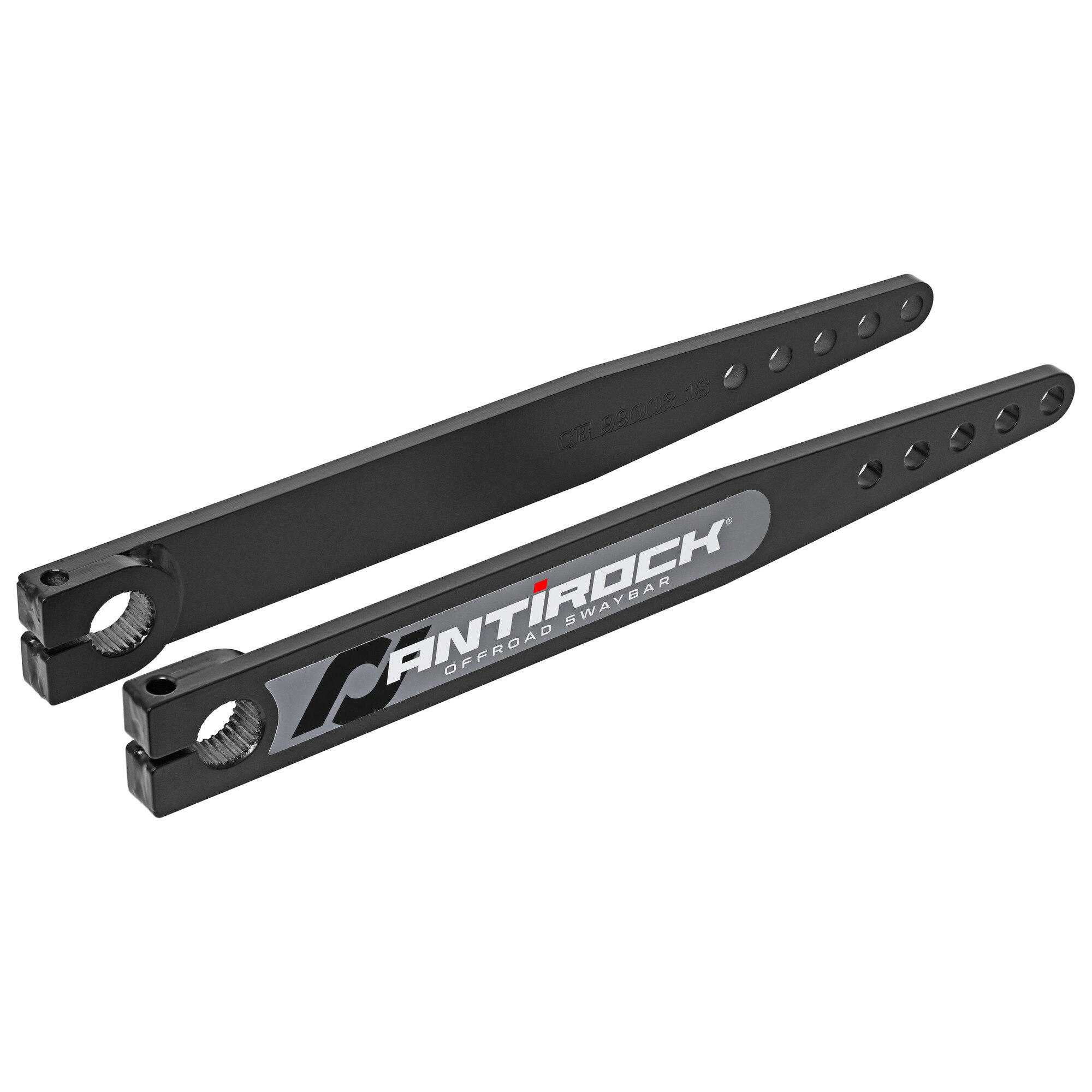

18 in. Fabricated Steel Antirock Sway Bar Arms are available separately for custom builders or as replacement parts for existing kits.
These arms would be replacements for our TJ Wrangler and Unlimited (LJ) front Antirock kits.
Arms are laser cut and welded steel, 18 in. long, 3/8 in. thick and feature 5 adjustable sway bar link mounting holes, allowing them to be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit.


Arms Fit:

  • Universal Applications
  • TJ Wrangler – F Antirock Sway Bar Kit
  • TJ Wrangler Unlimited (LJ) – F Antirock Sway Bar Kit

Kit Includes:

  • 18 in. Antirock Sway Bar Arms (pair)
  • Arm Stickers (pair)

Specs. and Dimensions:

  • Overall length  =  18 in.
  • Thickness  =  3/8 in.
  • Material  =  laser cut steel
  • Spline count  =  25
  • Center of splined hole to center of 1/2 in. hole #1 (nearest)  =  12.195 in.
  • Center of splined hole to center of 1/2 in. hole #2  =  13.195 in.
  • Center of splined hole to center of 1/2 in. hole #3 (middle)  =  14.195 in.
  • Center of splined hole to center of 1/2 in. hole #4  =  15.195 in.
  • Center of splined hole to center of 1/2 in. hole #5 (farthest)  =  16.195 in.
  • Weight  =  8lbs. (for the pair)

Notes:

  • These are the replacement arms for our TJ Wrangler or Unlimited (LJ) front Antirock kit.
  • Arms may be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit. This bracket kit adds 1 1/2 in. in arm length and the ability to offset the end link up to 1 1/4 in.
  • See CE-99005A for arm hardware kit.
