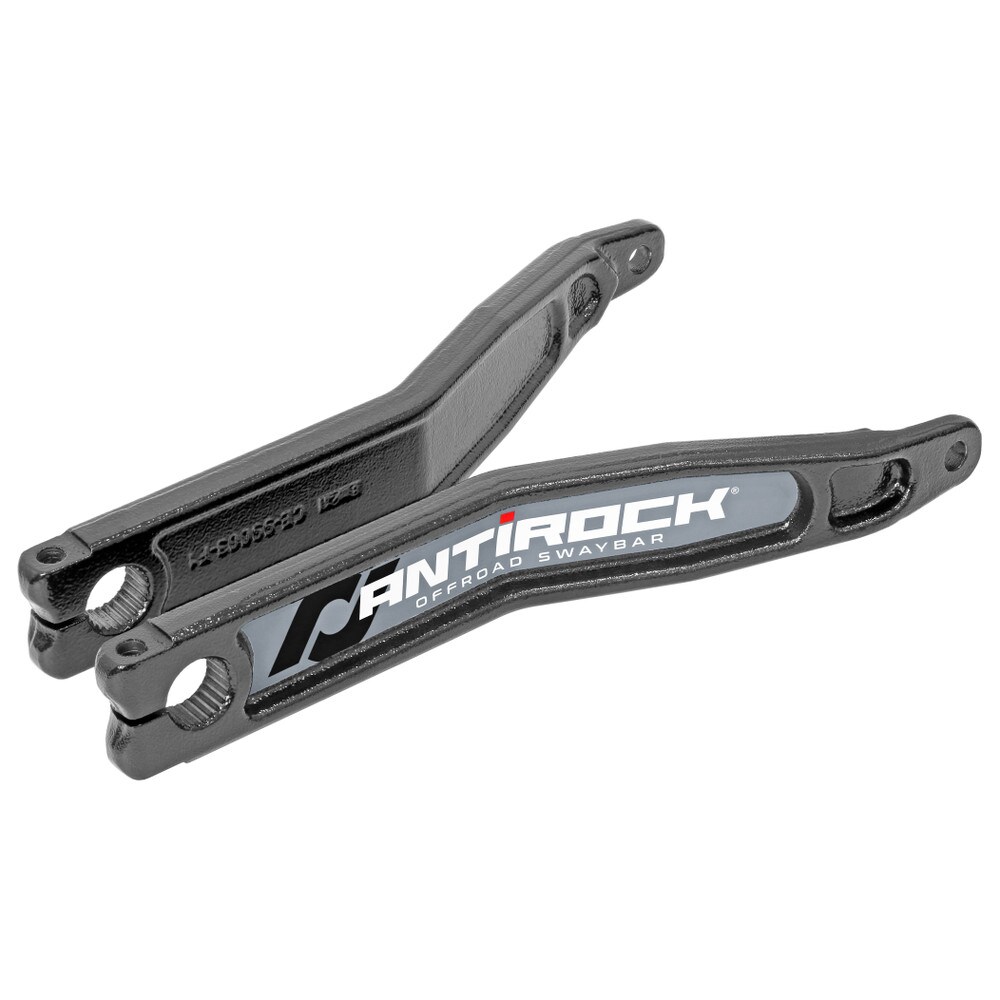

RJ-202001-101 - Antirock Sway Bar Forged Chromoly Arms (15 in.)

SKU RJ-202001-101
$193.00

Details

For those looking for maximum strength and cool factor for their off-road or rock crawling rig, RockJock’s Forged 4140 Chromoly Antirock Sway Bar Arms have got you covered!
Available in various lengths and shapes to suite different builds and applications, the forged I-beam construction provides dramatic strength and rigidity.
These specific arms are 15 in. long from tip to tip, 3/4 in. thick and feature a 2 1/2 in. offset bend to provide clearance in applications where it’s needed. At the arm mounting end, you’ll find our standard 25 spline that fits all common Antirock torsion bars as well as the vertical pinch bolt hole for attaching the arm to the bar.
At the end link mounting end, the arm forging trims down to 3/8 in. thick and you’ll find a 1/2 in. hole for mounting of Sway Bar End Links
Arms are sold as a pair only, are finished in a textured gloss black powder coat and include stickers.


Arms Fit:

  • Universal Application (in 25 spline torsion bar applications)
  • Included in CE-9900JLF JL/JT front Antirock Kit
  • Included in RJ-246100-101 JL/JT front Antirock Kit
  • Included in RJ-246100-103 JL/JT front Antirock Kit
  • Included in CE-9900JKF JK front Antirock Kit
  • Included in RJ-236100-101 JK front Antirock Kit
  • Included in CE-9900TJR TJ/LJ rear Antirock Kit

Kit Includes:

  • (1) Pair of 15 in. long Forged Antirock Sway Bar Arms
  • (1) Pair of Sway Bar Arm Stickers

Component Specs.:

  • Overall length = 15 in. (measured on a flat plane)
  • Material = 4140 chromoly, forged
  • Thickness: = 3/4 in. (3/8 in. at the tip where end links mount)
  • Offset = 2 1/2 in.
  • Spline count = 25
  • Center of splined hole to center of 1/2 in. hole = 12.75 in.
  • Weight = 7 lbs. (for the pair)

Notes:

  • These arms are found in many of our bolt-in Antirock Sway Bar Kits for JL/JT, JK and TJ/LJ vehicles.
  • See CE-9901D for sway bar arm hardware kit.
