JK-9704SB - Steering Stabilizer Shock Bracket Kit (fits 1 1/2 in. Rod)
Details
When installing heavy duty steering with larger than stock rods or aftermarket differentials, you’ll likely encounter the need to relocate your steering stabilizer shock, or the need for a new bracket that fits a larger tie rod.

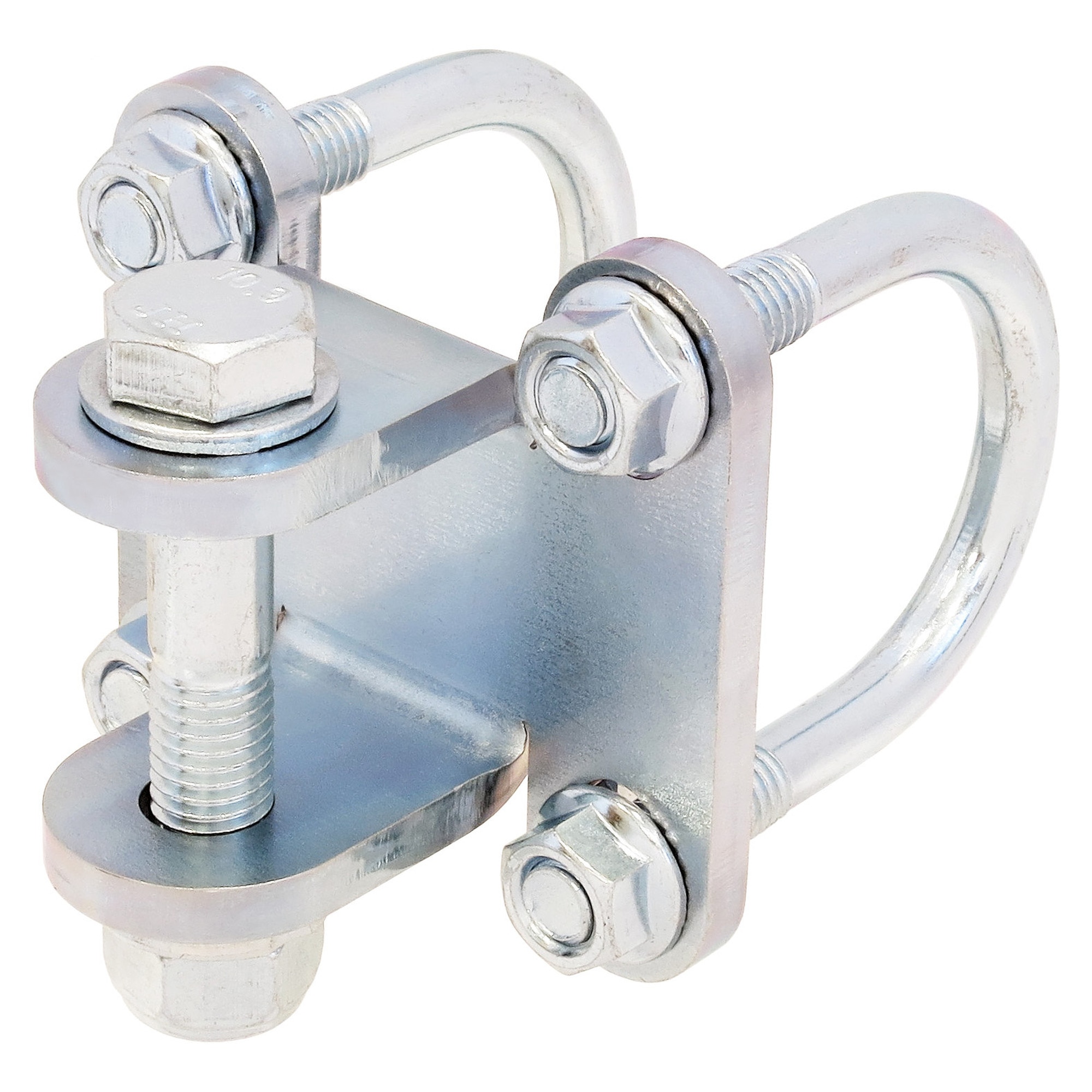

This Steering Stabilizer Shock Relocation Bracket from RockJock should do the trick! Designed to fit common 1 1/2 in., this U-bolt style bracket kit is an easy, bolt-on solution for remounting your stabilizer shock to keep your vehicle handling as it should!
Bracket is designed to fit most aftermarket shocks that feature a 1.405 in. mounting width, as well as factory JK and TJ shocks. Does not work with factory JL and JT shocks as the inboard end of those shocks features a 1.5 in. mounting width (see RJ-441108-101 for this same bracket that is compatible with the stock JL and JT shock).
Kit Fits:
- All 1 1/2 in. tube size Tie Rods
- JK Wrangler and Unlimited Factory Stabilizer Shock
- TJ Wrangler and LJ Unlimited Factory Stabilizer Shock
- All other traditional width spec. stabilizer shocks w/ 1.405 in. mounting width
Kit Includes:
- Laser cut and formed 1/4 in. steel bracket
- All required hardware & step-by-step instructions
Kit Features:
- Laser cut and formed 1/4 in. steel bracket
- Clear zinc plate finish
- 2-year warranty
Notes:
- Fits 1 1/2 in. tie rods only!
- Bracket accepts 1.405 in. wide (common, standard) mounting width shocks.
- Does not work with factory JL and JT shocks. See our RJ-441105-101 or RJ-441108-101 bracket kit offerings.
- For use with traditional style stabilizer shocks only – not for use with ram assist!
Instruction Manual:
