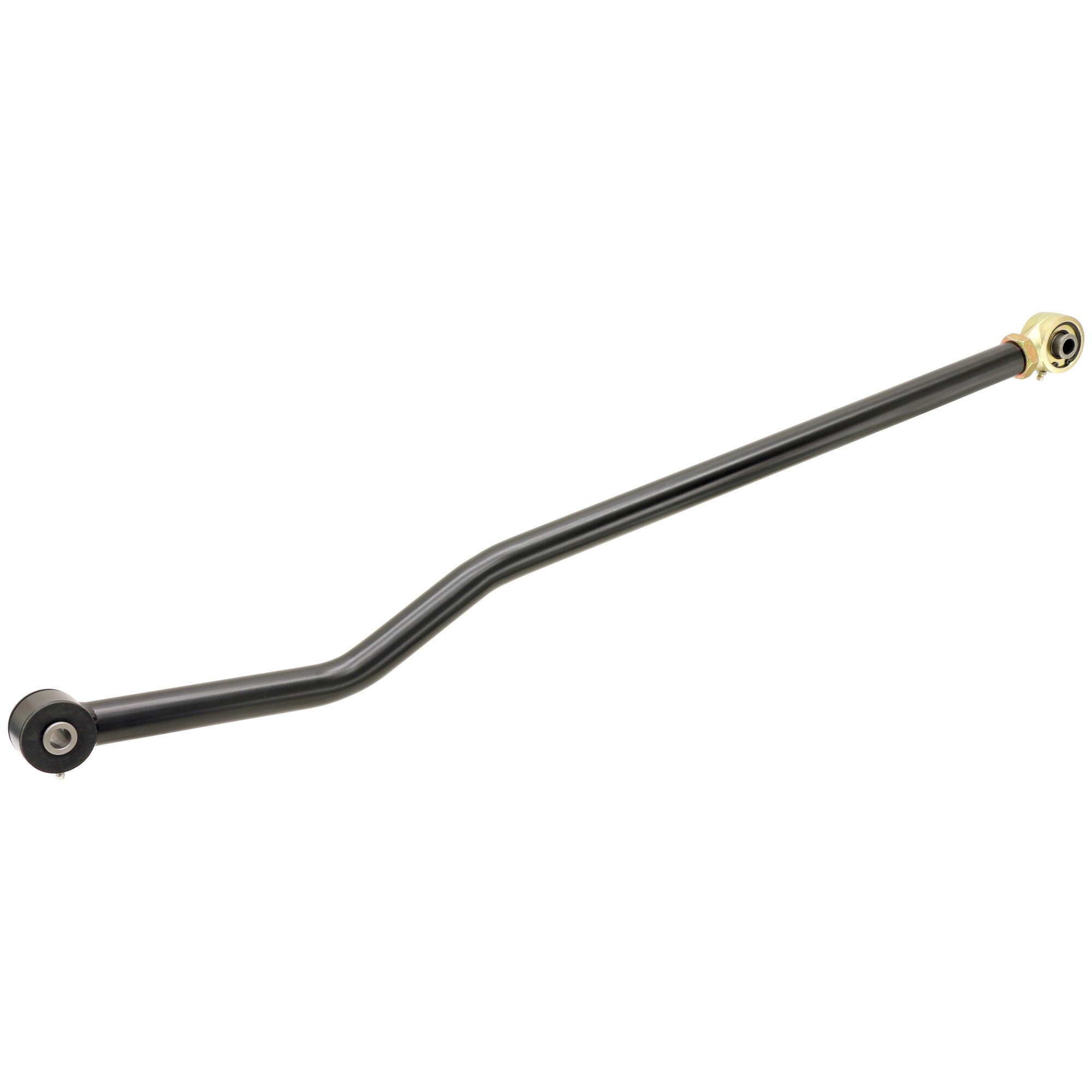

CE-9120RJL - JL Johnny Joint Rear Trac Bar

SKU CE-9120RJL
$374.00
Back

Details

RockJock's Johnny Joint Adjustable Length Rear Trac Bar features precise bends for a perfect fit into all models of JL Wranglers and Unlimiteds. This bar can be used on a stock JL, on a JL with our Suspension System, or anything in between!
For maximum articulation, Trac Bar features greasable, narrow Johnny Joint rod ends on both ends, the frame end being adjustable.
Finish is semi-gloss black powder coat on the bar and gold zinc plating on the Johnny Joint adjuster end.


Kit Fits:

  • JL Wrangler Unlimited (4-door) – All Models
  • JL Wrangler (2-door) – All Models

Kit Includes:

  • Johnny Joint Rear Trac Bar Assembly
  • (2) Rubber Washers (outboard of the Johnny Joint at the axle end to encourage the bar to re-center itself after articulating)

Adjustment Range:

  • Closed – 37.435 in.
  • Extended – 38.250 in.

Notes:

  • Factory hardware is retained to attach the trac bar to the axle and the chassis.
  • Bar is fabricated from 1.25 in. x .250 in. wall 4130 chromoly tubing.
  • Adjuster features 1 in.-14 RH threads.
  • Applicable Johnny Joint Tool for this Trac Bar: CE-9112T
  • Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G

Parts List:
