CE-9114-28 - 2 1/2" Johnny Joint®, Forged, 1 1/4" RH Thread (2.625" x .640" Ball)

2 1/2" Johnny Joint, Forged, 1 1/4" RH Thread (2.625" x .640" Ball)

Replaces P/N CE-9114-26

SKU: CE-9114-28
$60.00
PROP 65 WARNING:

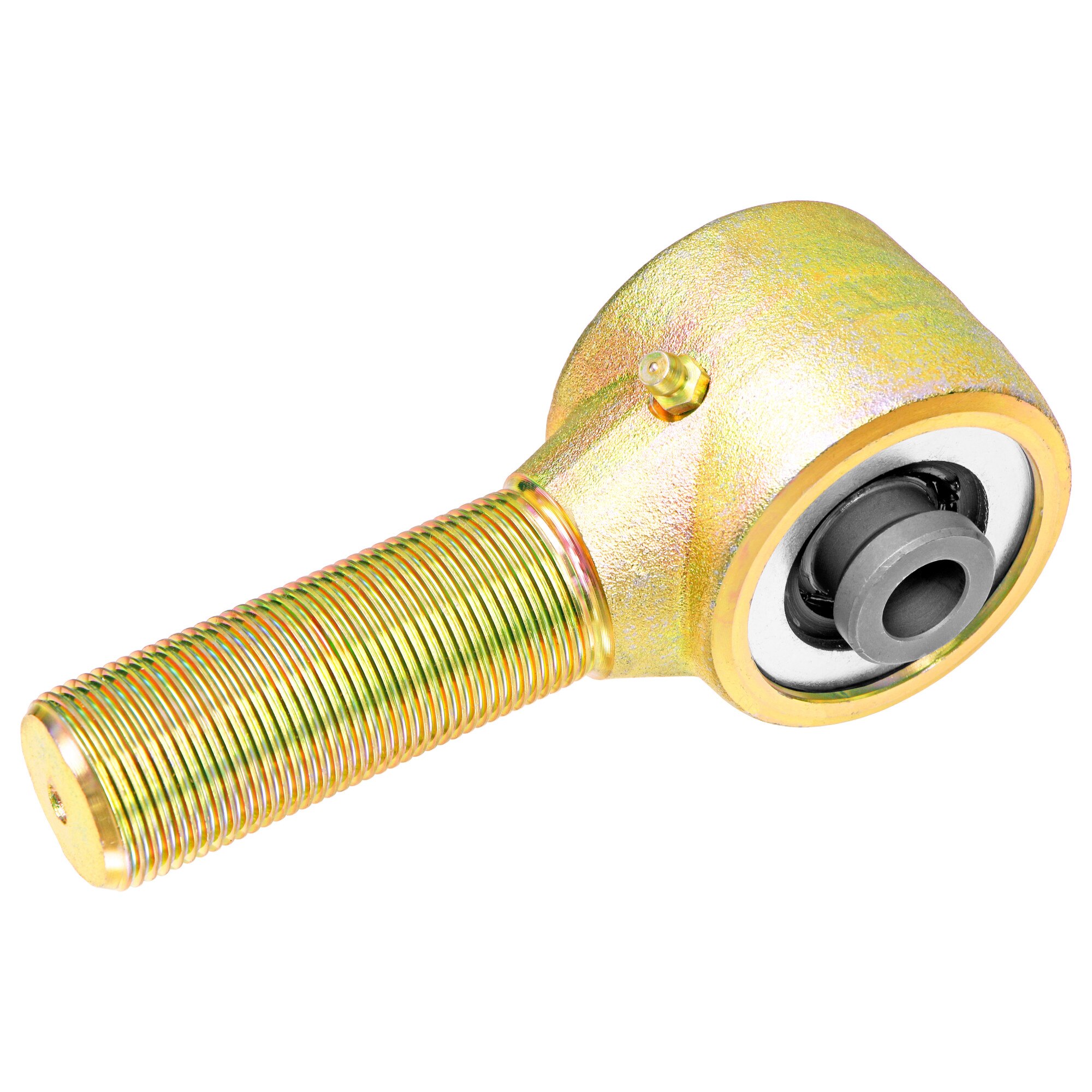

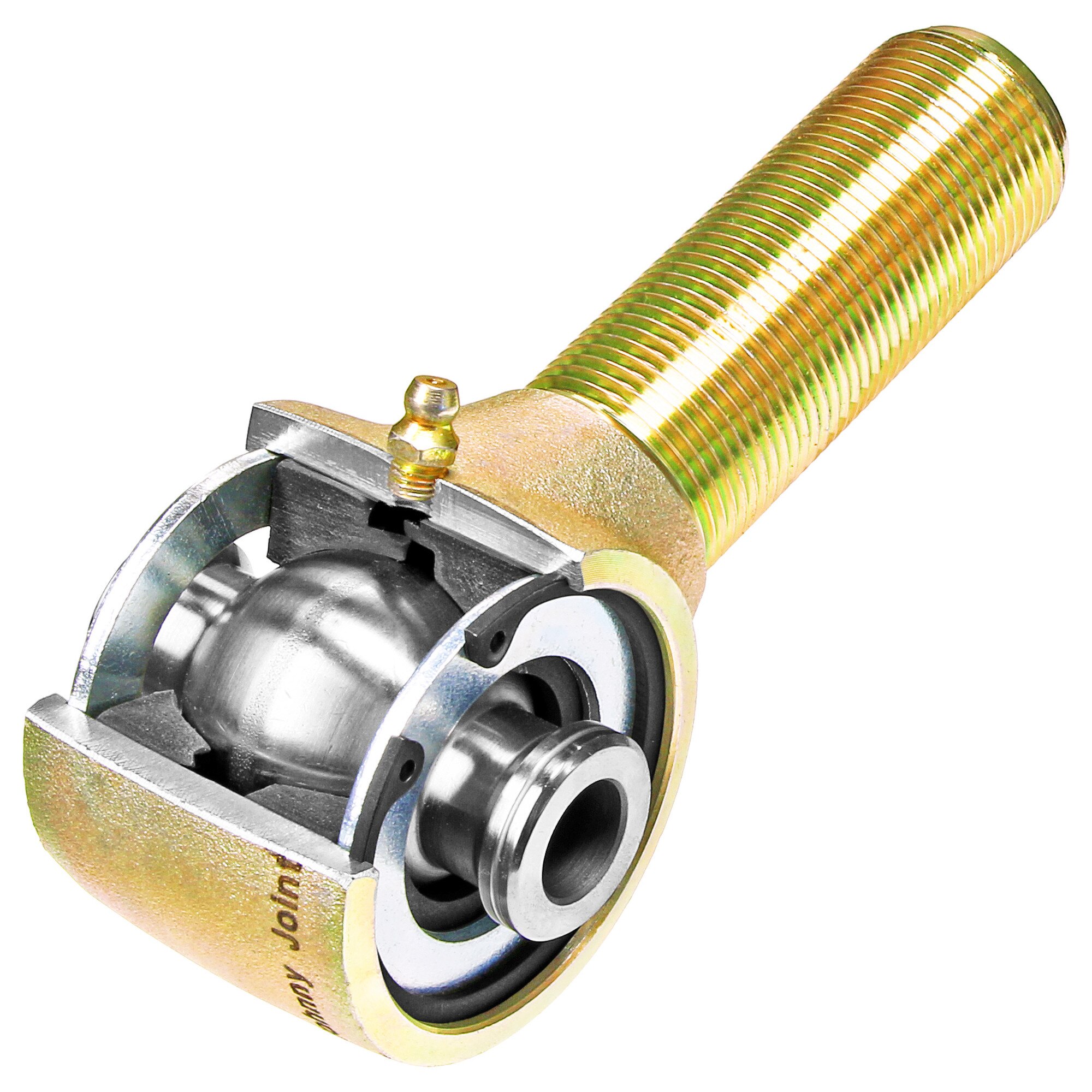

Forged Johnny Joint® rod ends feature forged steel construction, a 1 1/4"-12 right hand threaded shank and come fully assembled with our standard Johnny Joint internals (2.625" wide ball center with a .640" thru bolt hole). These units are externally greasable via a zerk fitting. Units will also accept our 5/8" greasable thru bolts as well (available seperately). Finished in gold zinc plating. We also keep the jam nuts for these units on hand at all times as well.

Note: Replaces P/N CE-9114-26 - The thru bolt hole dimeter has been increased by .015 to improve 5/8 bolt fitment

Forged Johnny Joint® rod ends feature forged steel construction, a 1 1/4"-12 right hand threaded shank and come fully assembled with our standard Johnny Joint internals (2.625" wide ball center with a .640" thru bolt hole). These units are externally greasable via a zerk fitting. Units will also accept our 5/8" greasable thru bolts as well (available seperately). Finished in gold zinc plating. We also keep the jam nuts for these units on hand at all times as well.

Note: Replaces P/N CE-9114-26 - The thru bolt hole dimeter has been increased by .015 to improve 5/8 bolt fitment

Products specifications
Body Type Forged Steel (Threaded)
Body Series 2.5 inch OD, Standard Body
Body Width 2 inches
Thread Size 1 1/4 inch, 12 TPI
Thread Direction Right Hand
Shank Length 3 1/4 inch
Mount Width 2.625 inches
Hole Diameter .640 inch (5/8 or 16 mm)
Misalignment 31° Total
Lubrication Method External zerk fitting located on joint body
Body Finish Yellow zinc plating
