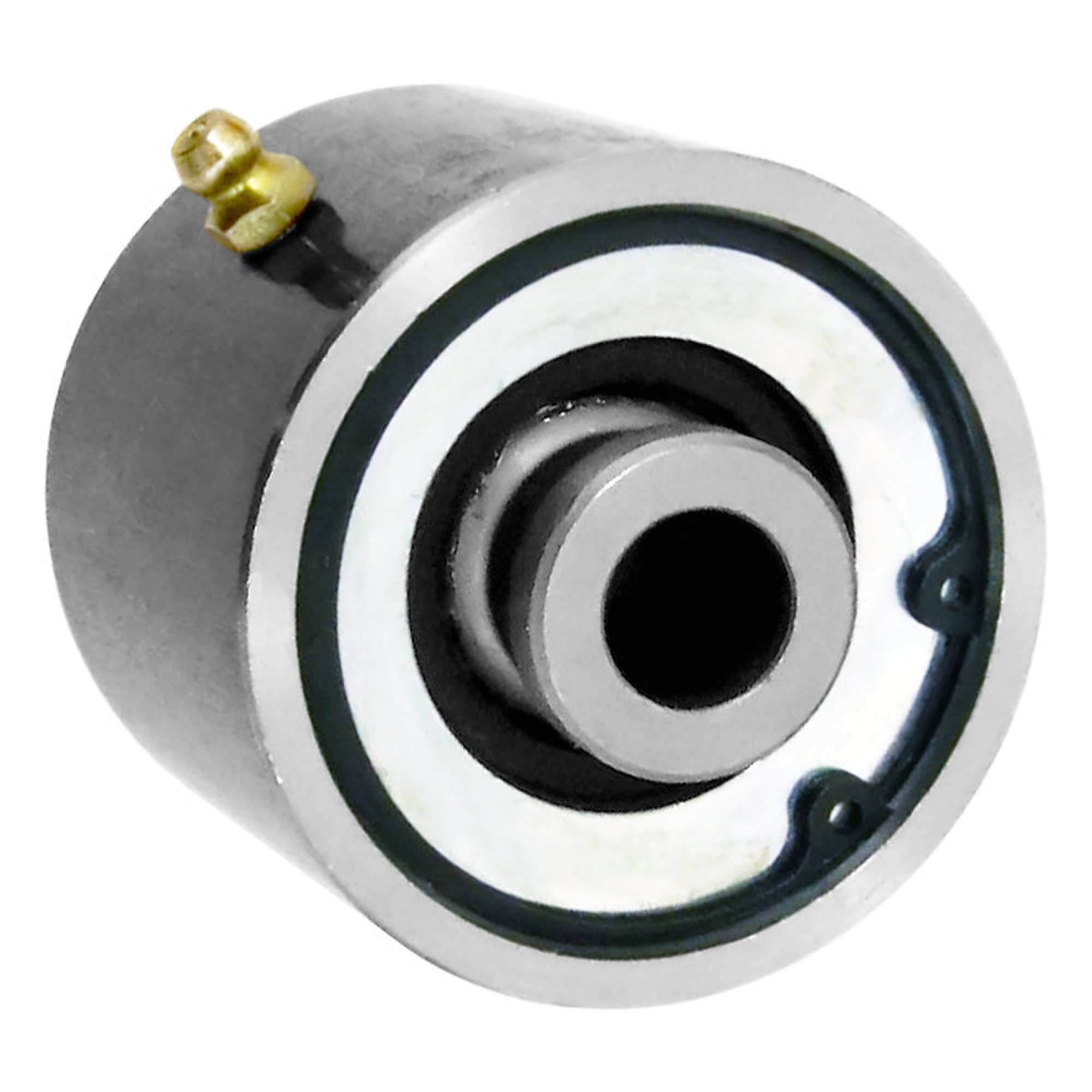

CE-9110P-28 - 2 1/2" Johnny Joint® Rod End - Externally Greased (2.625" x .640" Ball)

2 1/2" Johnny Joint Rod End - Externally Greased (2.625" x .640" Ball)
SKU: CE-9110P-28
$56.00
PROP 65 WARNING:

RockJock's weld-on Johnny Joints® for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint® rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180" wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2" o.d. and features a 2.625" mounting width and a .640" thru bolt hole.

RockJock's weld-on Johnny Joints® for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint® rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180" wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2" o.d. and features a 2.625" mounting width and a .640" thru bolt hole.

Products specifications
Body Type Weld-on
Body Series 2.5 inch OD, Standard Body
Body Width 2 inches
Mount Width 2.625 inches
Hole Diameter .640 inch (5/8 or 16 mm)
Misalignment 31° Total
Lubrication Method External zerk fitting located on joint body
Products specifications
Body Type Weld-on
Body Series 2.5 inch OD, Standard Body
Body Width 2 inches
Mount Width 2.625 inches
Hole Diameter .640 inch (5/8 or 16 mm)
Misalignment 31° Total
Lubrication Method External zerk fitting located on joint body
