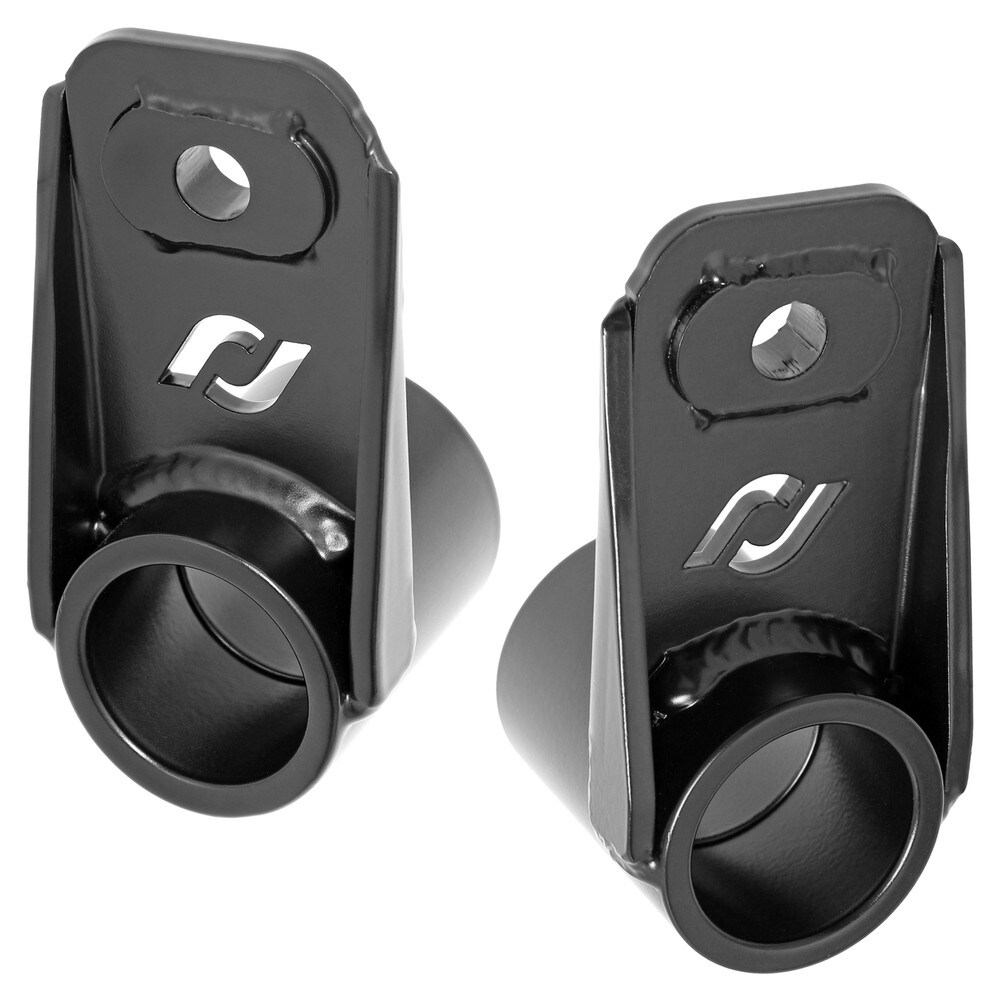

RockJock's rear Bronco Antirock Sway Bar Frame Brackets are found in our complete Bronco rear Antirock Sway Bar Kit, or may be purchased separately.
Brackets are fabricated from laser cut and formed 3/16 in. steel, welded and finished in semi-gloss black powder coat.

Brackets Fit:

• (Included in) RJ-286200-101 Bronco rear Antirock Kit

Kit Includes:

• (1) Bronco left rear Antirock Sway Bar Frame Bracket
• (1) Bronco right rear Antirock Sway Bar Frame Bracket

Component Specs.:

• Construction = laser cut, formed and welded 3/16 in. steel
• Bushing Bore = for use with CE-9901D
• Fitment = bolts onto side of frame rail behind rear axle centerline
• Finish = semi-gloss black powder coat

Notes:

• This bracket is only intended for use with the balance of the components included in our RJ-286200-101 Bronco rear Antirock Sway Bar Kit
• Bracket installs onto the side of the frame rail behind axle center line, as per the complete sway bar kit’s instruction manual.

Mandatory Installation Components:

• 1/2 in.-20 x 1 1/2 in. Long Hex Bolt:  RJ-501201-1
• 1/2 in. Flat Washer:  CE-H0014
• 1/2 in.-20 Internal Frame Rail Nut:  RJ-522200-1

Associated Components:

• Delrin Sway Bar Bushing:  CE-9901D

Parts List:

• Steel Frame Bracket (LH):  RJ-281202-101
• Steel Frame Bracket (RH):  RJ-281202-102
