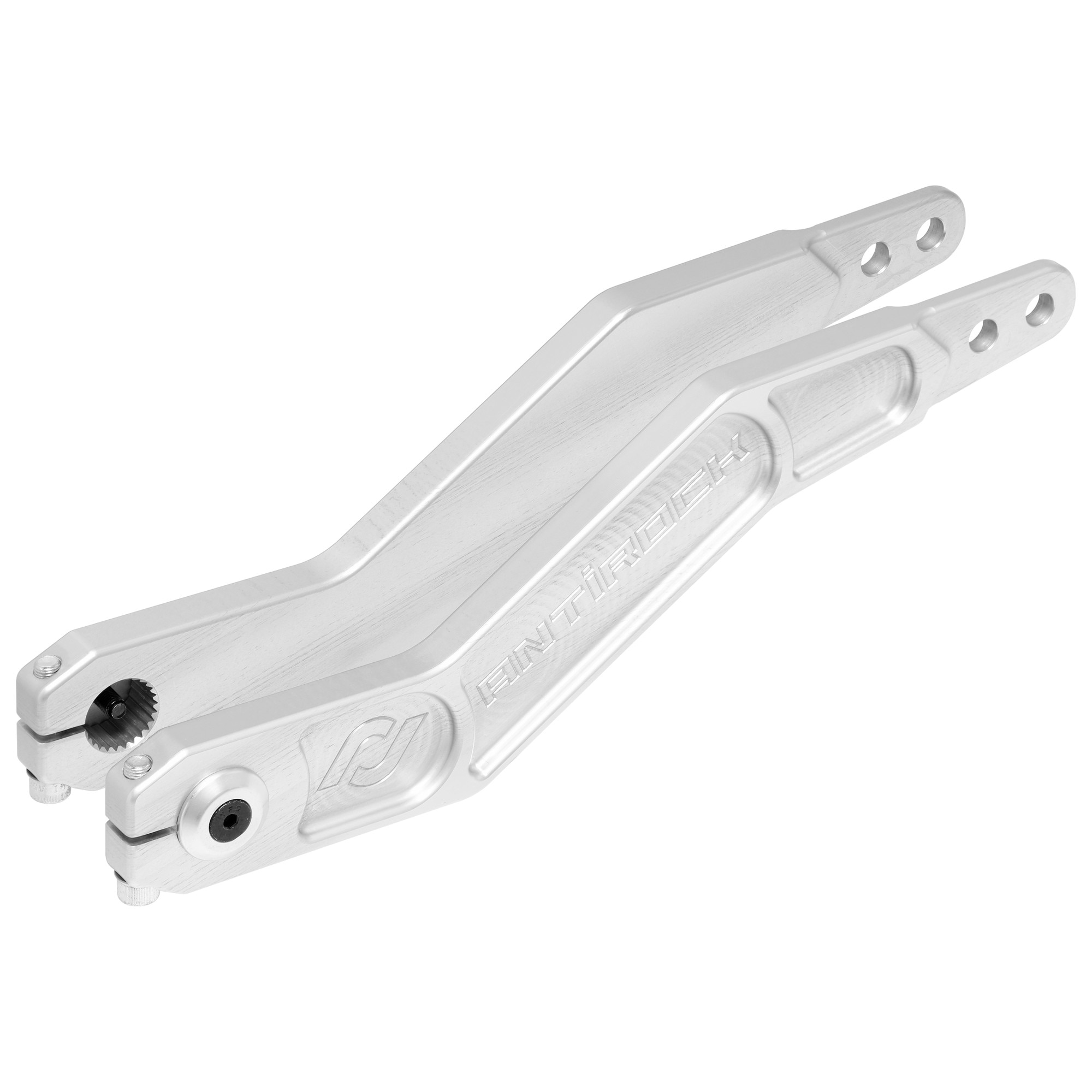

RJ-202014-101 - Antirock Sway Bar Billet 7075 Aluminum Arms (16.2 in. Vertically Offset)

Billet Aluminum Antirock Sway Bar Arms are beautifully constructed, yet offer race quality strength for aggressive off road applications!
Made entirely in house on our own machines, we start with premium 7075T6 aluminum material, CNC machine the arms to shape, CNC machine the pocketed design and the logo etchings, broach the 25 splines and finish them off in clear anodizing!
These specific arms are 16.2 in. long from tip to tip and feature a vertical offset to attain maximum up travel. At the arm mounting end, you’ll find our standard 25 spline that fits all common Antirock torsion bars. Our billet aluminum finishing washers and flat head allen bolts that thread into the end of the sway bar torsion bar are also included, as well as the arm-to-torsion-bar pinch bolts and nuts.
At the end link mounting end, the arms trim down to 3/8 in. thick and you’ll find two 1/2 in. Sway Bar End Link mounting holes that allow you to adjust end link mounting position to increase or decrease leverage on the torsion bar. These 2 holes are commonly used in conjunction with our CE-99005A Double Sheer End Link Bracket Kit.
Arms are sold as a pair only. Finish is clear anodizing for a long lasting, clean appearance.

Arms Fit:

• Universal Application (in 25 spline torsion bar applications)
• JT Gladiator rear Antirock Kit  (upgrade our RJ-256200-101 kit)

Kit Includes:

• (1)  Pair of 16.2in. long Billet Aluminum Antirock Sway Bar Arms
• (1)   Arm Hardware Pack

Component Specs.:

• Overall length  =  16.2 in.
• Material  =  7075T6 aluminum, forged
• Thickness  =  3/4 in. (3/8 in. at the tip where end links mount)
• Offset  =  Vertical
• Spline count  =  25
• Center of splined hole to center of nearest 1/2 in. hole  =  13.20 in.
• Center of splined hole to center of farthest 1/2 in. hole  =  14.20 in.
• Weight  =  3.11 lbs. (for the pair)

Notes:

• For use with any 25 spline sway bar torsion bars that we offer, however, these arms are NOT for use with our 36 in. x 1 in. sway bar or our 40 in x 1 in. sway bar.
• These arms are available for upgrading our RJ-256200-101 JT Gladiator rear Antirock Sway Bar Kit
• Arms may be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit. This bracket kit adds 1 1/2 in. in arm length and the ability to offset the end link up to 1 1/4 in. side to side.
• See RJ-520201-101 for sway bar arm hardware kit.
