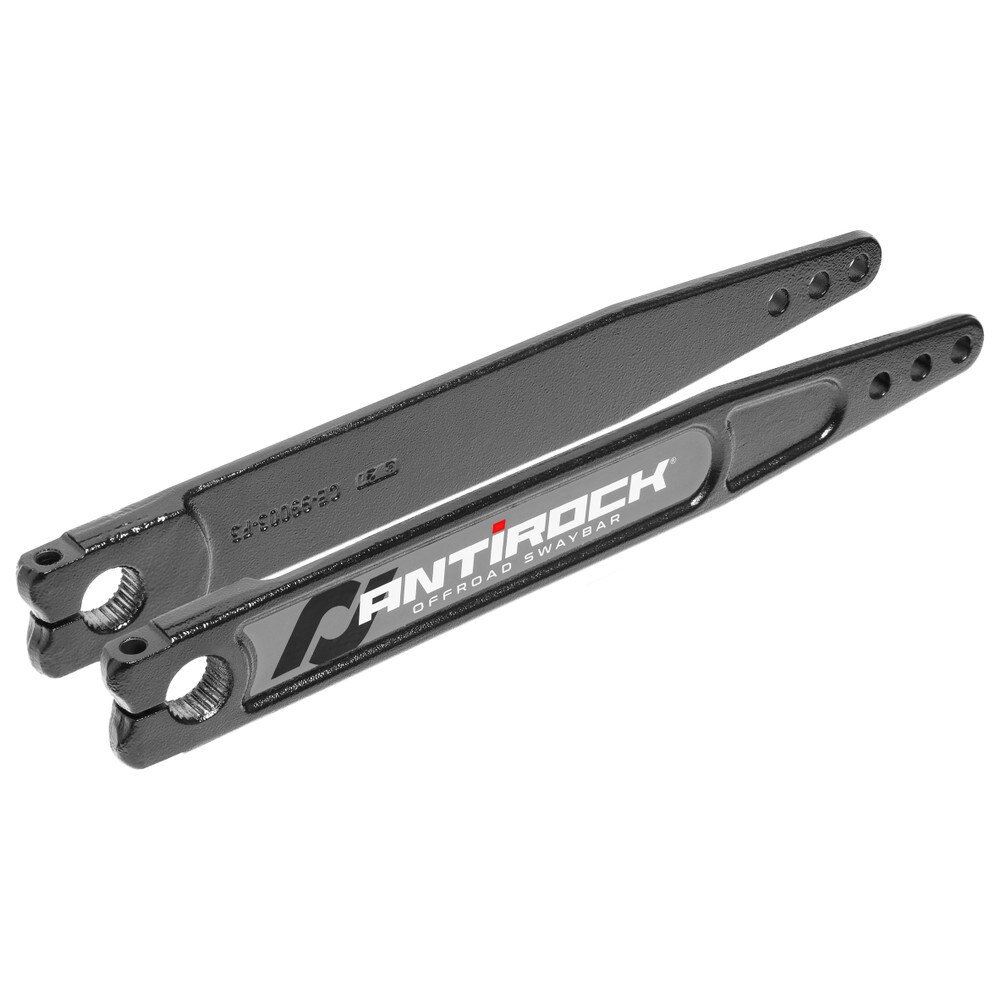

RJ-202003-101 - Antirock® Sway Bar Forged Chromoly Arms (18")

18” Forged Chromoly Antirock^® Sway Bar Arms are available separately for custom builders or as upgrade parts for existing kits.
These arms would be replacements for our Jeep TJ Wrangler & LJ Unlimited front Antirock kits.
For those looking for maximum strength for their rock crawling rig, these arms are 18” long, 3/4" thick at the splines, 3/8” thick on the length of the arm and provide maximum strength and rigidity via their forged 4340 chromoly construction.
These arms feature 3 adjustable sway bar link mounting holes and they can be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit.

Arms Fit:

• Jeep Wrangler TJ – front
• Jeep Wrangler Unlimited LJ – front
• Universal Applications

Kit Includes:

• 18” Antirock^® Sway Bar Arms (pair)
• Arm Stickers (pair)

Specs. & Dimensions:

• Overall length  =  18”
• Thickness  =  3/4" at the splines, 3/8" on the length of the arm
• Material  =  4140 chromoly, forged
• Spline count  =  25
• Center of splined hole to center of nearest 1/2" hole  =  14.195”
• Center of splined hole to center of middle 1/2" hole  =  15.195”
• Center of splined hole to center of farthest 1/2" hole  =  16.195”
• Weight  =  7lbs. (for the pair)

Notes:

• These are the replacement arms for a Jeep TJ & LJ front Antirock kit.
• Arms may be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit. This bracket kit adds 1 1/2" in arm length and the ability to offset the end link up to 1 1/4".
• See CE-99005A for arm hardware kit.
