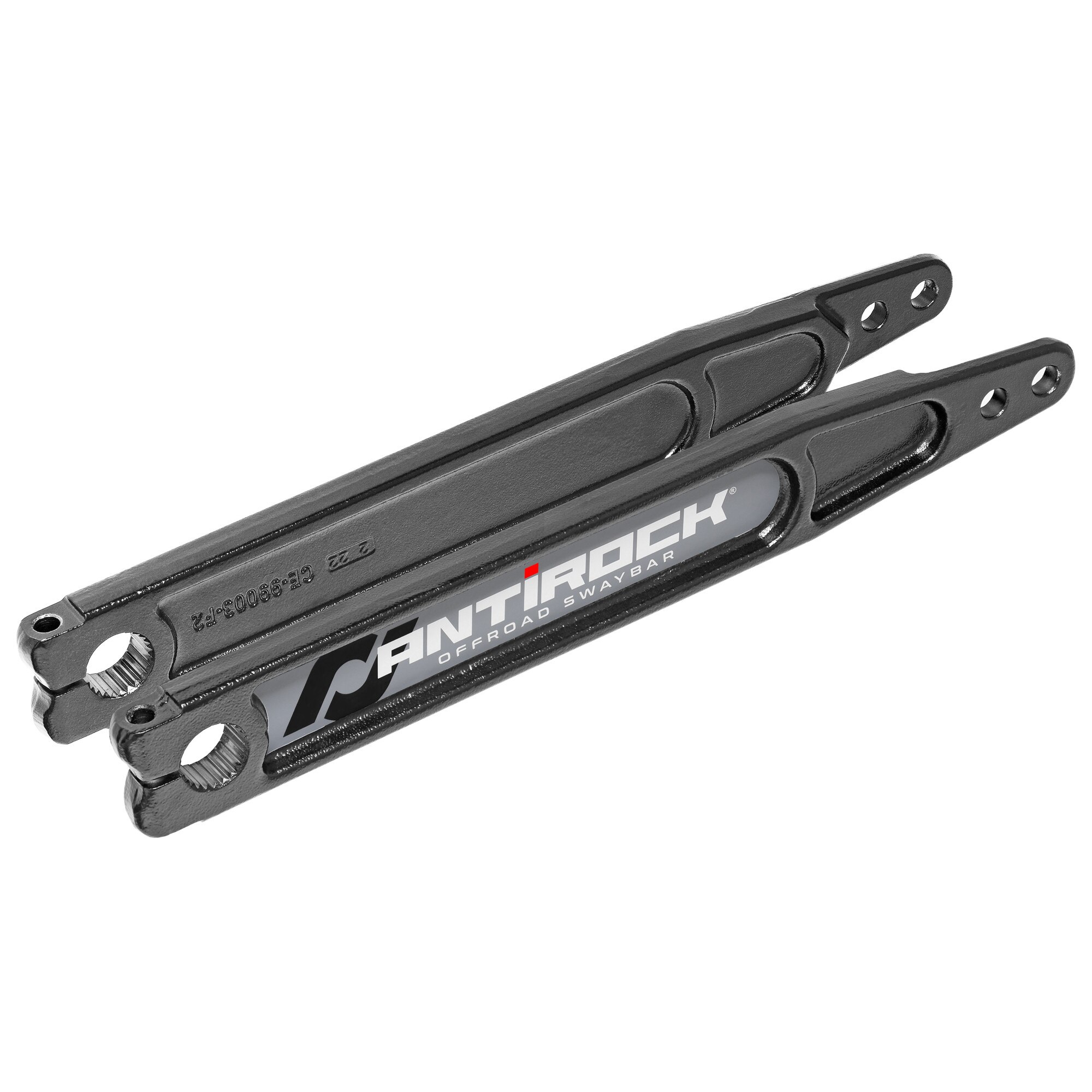

RJ-202002-101 - Antirock Sway Bar Forged Chromoly Arms (17 in.)

SKU RJ-202002-101
$193.00

Details

For those looking for maximum strength and cool factor for their off-road or rock crawling rig, RockJock’s Forged 4140 Chromoly Antirock Sway Bar Arms have got you covered!
Available in various lengths and shapes to suite different builds and applications, the forged I-beam construction provides dramatic strength and rigidity.
These specific arms are 17 in. long from tip to tip, 3/4 in. thick (with the exception of the tip being machined to 3/8 in. thick for end link mounting). At the mounting end, you’ll find our standard 25 spline that fits all common Antirock torsion bars as well as the vertical pinch bolt hole for attaching the arm to the bar. At the opposite end, you’ll find two 1/2 in. Sway Bar End Link mounting holes that allow you to adjust end link mounting position to increase or decrease leverage on the torsion bar.
Arms are sold as a pair only, are finished in a textured gloss black powder coat and include stickers.


Arms Fit:

  • Universal Application (in 25 spline torsion bar applications)
  • Included in CE-9900JLR4 JL Wrangler and Unlimited rear Antirock Kits
  • Included in CE-9900XJF XJ Cherokee and MJ Comanche front Antirock Kits

Kit Includes:

  • (1) Pair of 17 in. long Forged Antirock Sway Bar Arms
  • (1) Pair of Arm Stickers

Component Specs.:

  • Overall length = 17 in.
  • Thickness = 3/4 in. (with the exception of the tip being machined to 3/8 in. thick for end link mounting)
  • Material = 4140 chromoly, forged
  • Spline count = 25
  • Center of splined hole to center of nearest 1/2 in. hole = 14.195 in.
  • Center of splined hole to center of middle 1/2 in. hole = 15.195 in.
  • Weight = 8 lbs. (for the pair)

Notes:

  • These arms are found in our CE-9900JLR4 JL rear Antirock Sway Bar Kits as well as our CE-9900XJF XJ Cherokee and MJ Comanche front Antirock Sway Bar Kits
  • Arms may be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit. This bracket kit adds 1 1/2 in. in arm length and the ability to offset the end link up to 1 1/4 in.
  • See CE-99005A for sway bar arm hardware kit.
