RockJock’s Brake Line Relocation Tab for the passenger's side rear of all 2021-up Bronco vehicles (used in conjunction with our Bronco rear Antirock kit), simply has you remove the brake line from it's factory location on the axle housing, bolt this bracket on in it's place and bolt the brake line back up to this tab!

Kit Fits:

• 21-up Bronco (4-door) – All Models (factory axle housing)
• 21-up Bronco (2-door) – All Models (factory axle housing)

Kit Includes:

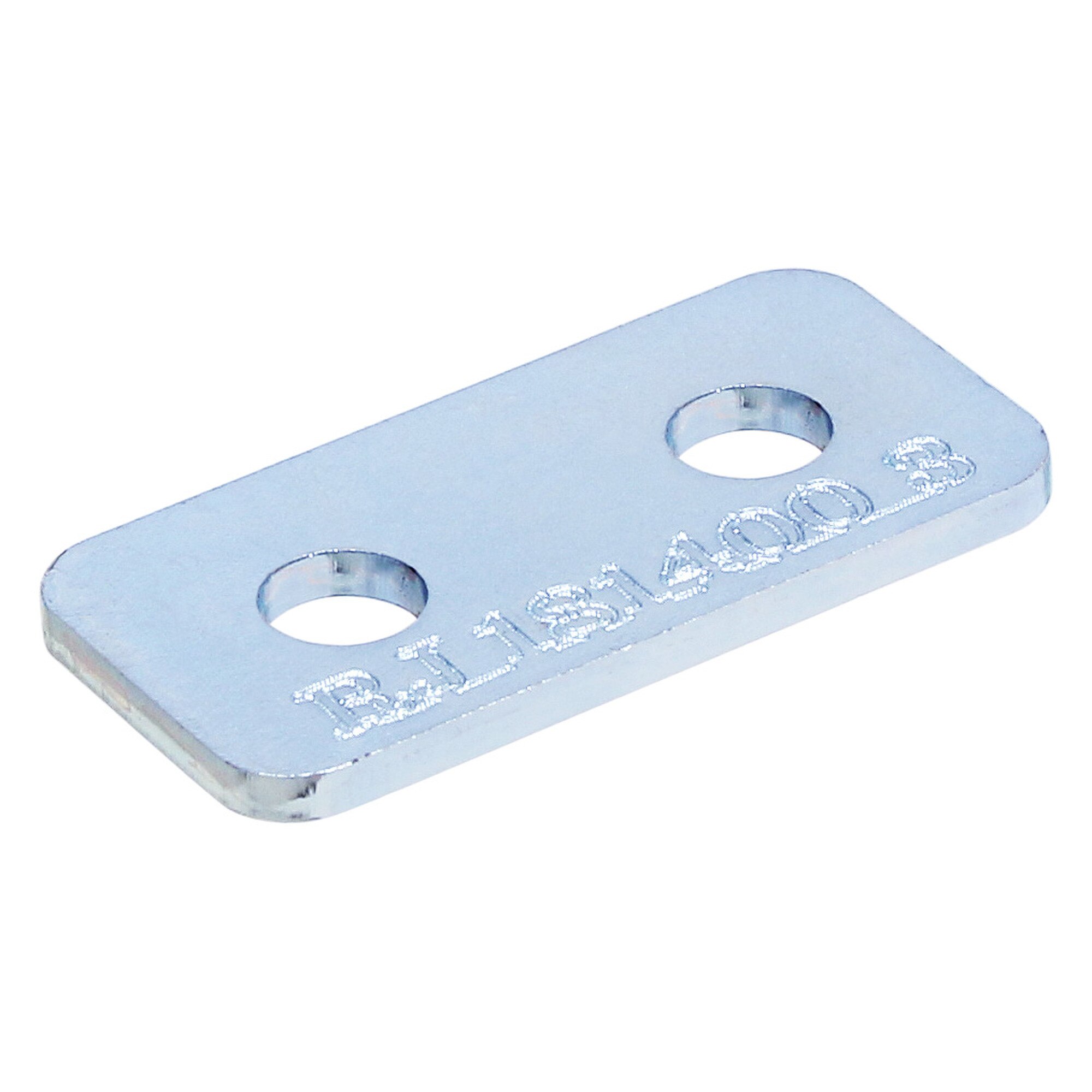

• (1) Brake Line Relocation Tab

Component Specs.:

• Construction = laser cut steel
• Thickness = .120 in.
• Length = 2 in.
• Width = 1 in.
• C-C of Holes = 1 in.
• Hole Size = .33 in. (both)

Notes:

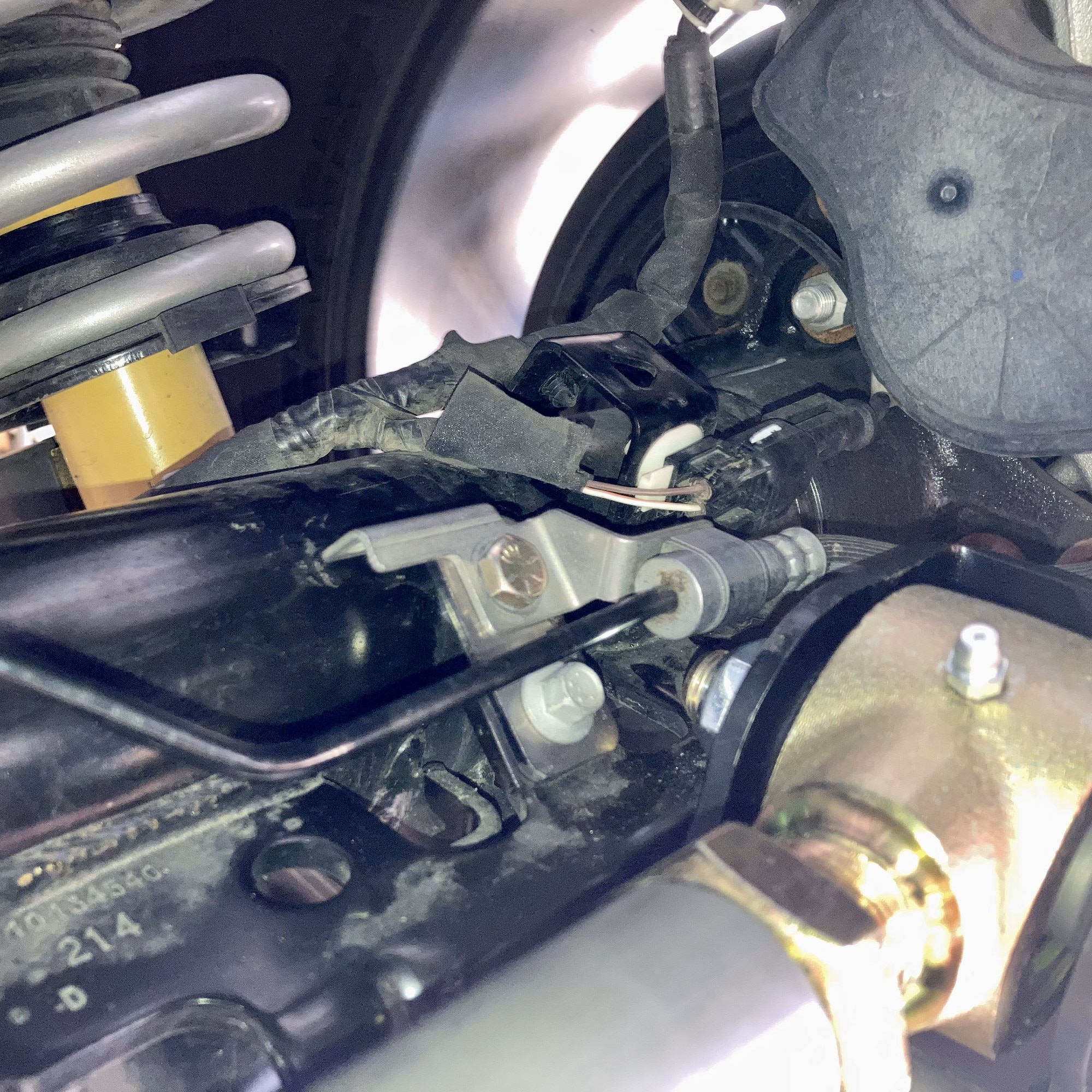

• Used on the passenger's side of the rear axle housing of all 2021-up Bronco vehicles when installing our Bronco rear Antirock Sway Bar kit.

Instruction Manual:

• RJ-181400-3 Kit

Mandatory Installation Components:

• 8mm-1.25 x 16mm Serrated Flanged Hex Bolt: RJ-501106-1
• 8mm-1.25 Lock Nut: RJ-502106-1
