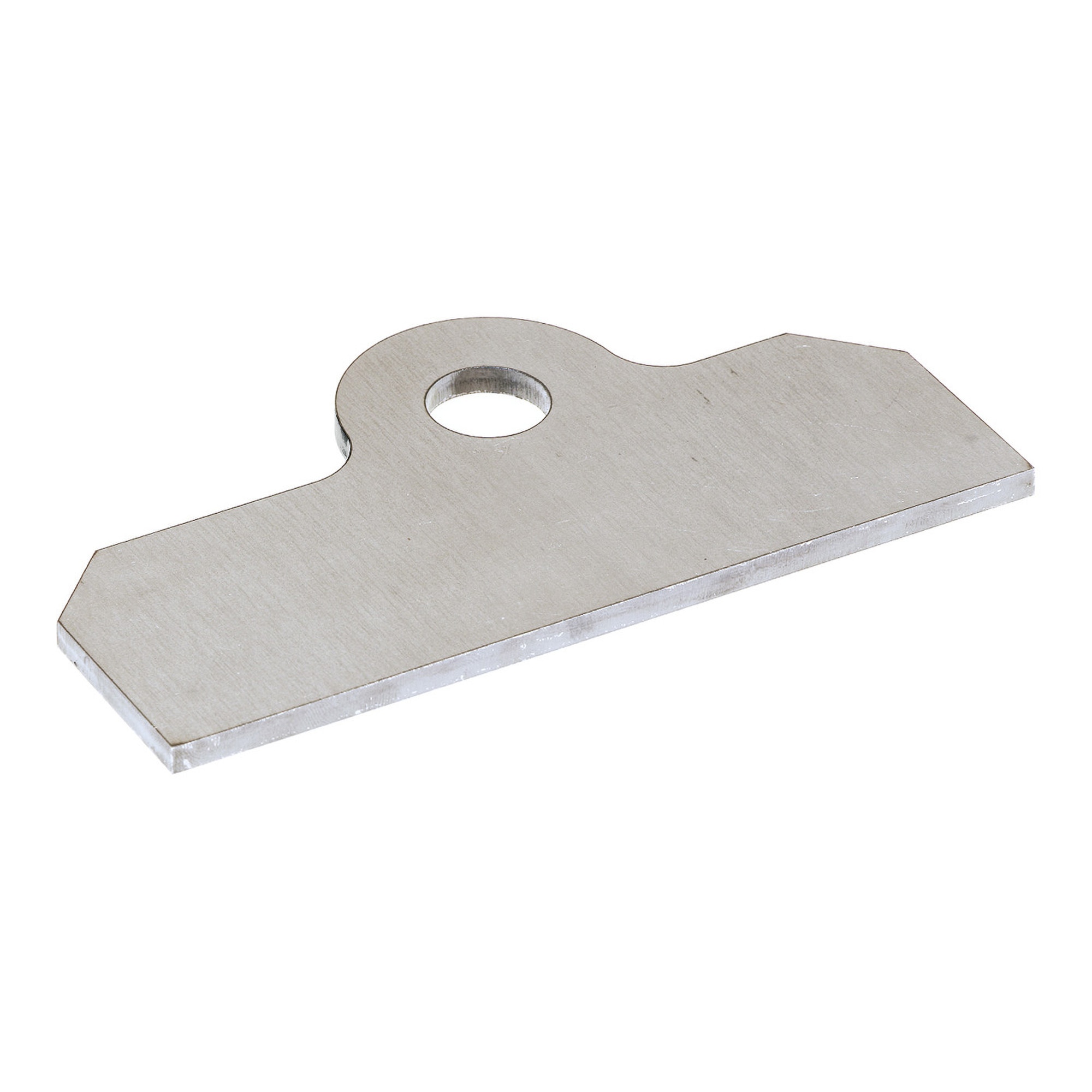

RJ-141500-9 - JL Long Arm Kit Rear Frame Bracket Tab

*** NOT AVAILABLE FOR PURCHASE - only available in our RJ-141000-101 JL Long Arm Suspension Bracket Set. ***

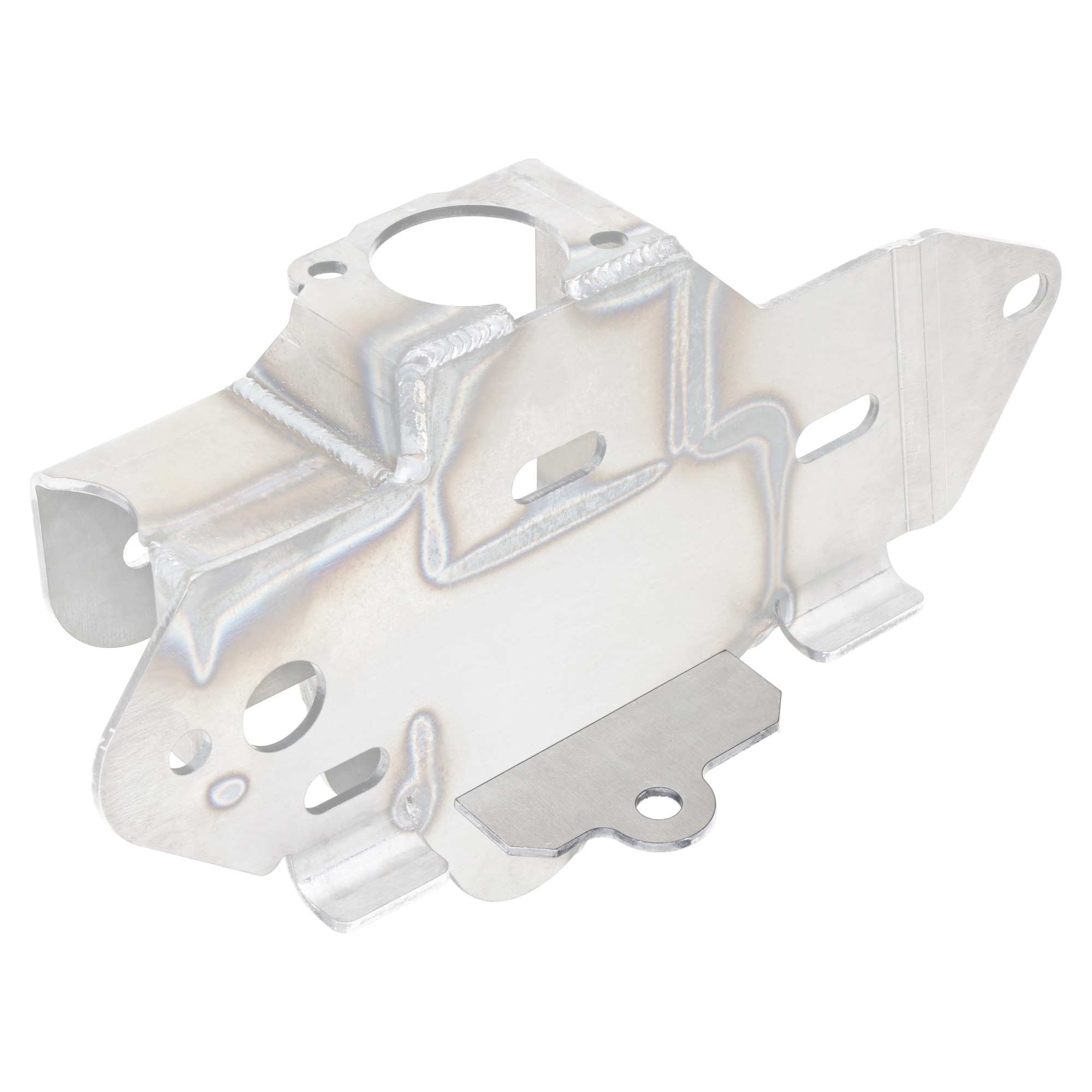

RockJock's Chassis Bolt Hole Plate for our JL Long Arm Kit in installed after the rear frame brackets are installed. It bolts to an existing hole in the bottom of the chassis and then is welded to the back side of the long arm bracket (one on each side).

Component Specs.:

• Laser cut 3/16 in. thick steel
• 5.48 in. overall length
• 2.07 in. overall width (from long edge to CL of hole)
• Features one .700 in. hole
• Raw finish

Installation Guide:

• Long Arm Kit Guide
