CE-91126S - Johnny Joint 2 in. Safety Washer (.115 in thick, wide joints)

RockJock's Johnny Joint Washers are a critical component of Johnny Joint function. These washers retain the internals into all styles of Johnny Joint bodies, but additionally, they are available in various thicknesses so that the joint preload may be adjusted per custom application.
We also offer safety washers for all style of Johnny Joints that feature billet steel construction and a protruding hub on their face that, once installed, lock the rings of the snap ring in place, preventing the snap ring from attempting to push inward under extreme load and escape.

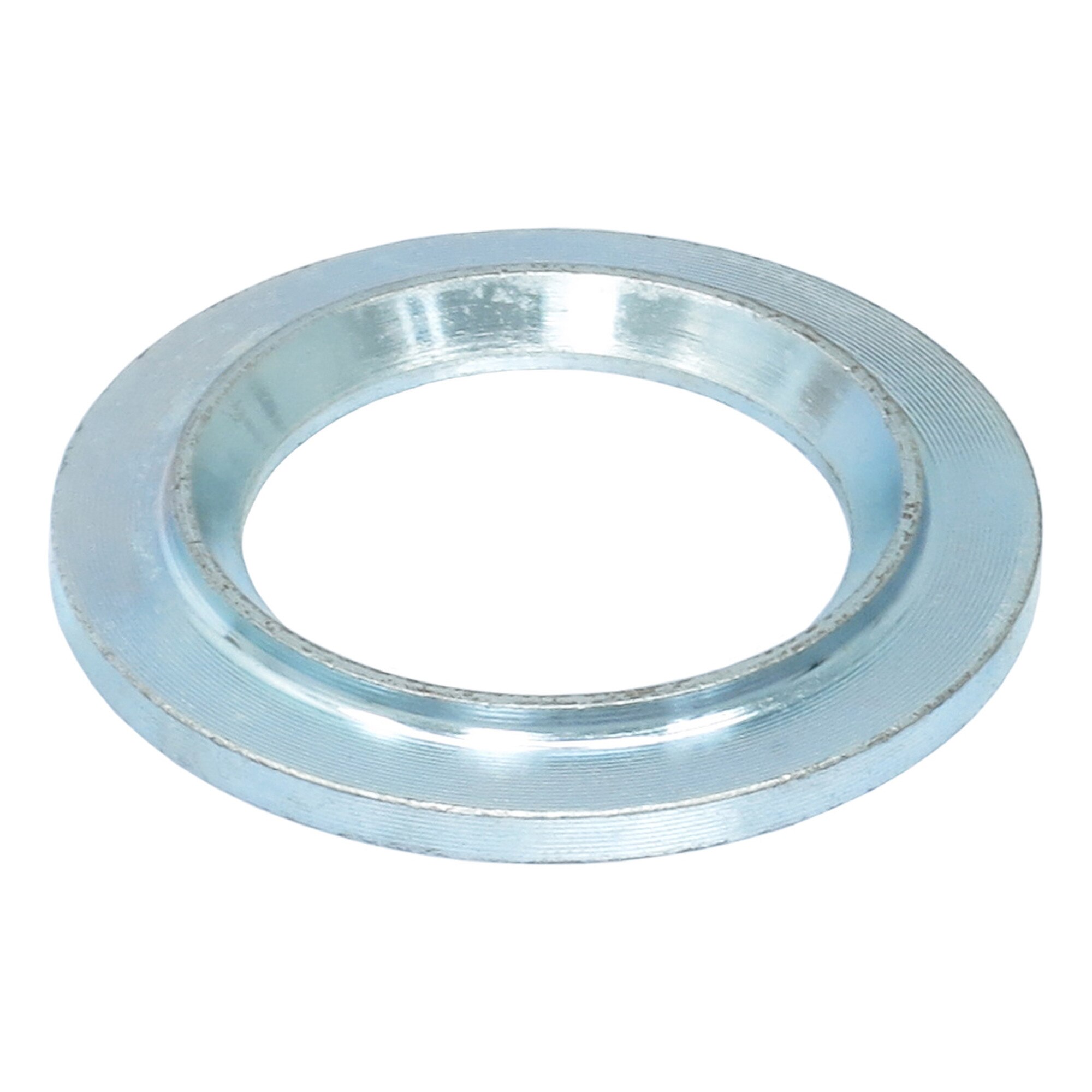

This 2 in. Safety Washer, used specifically with wide body joints, features a .115 in. thickness, CNC machined billet 4140 chromoly construction, a snap ring safety hub, heat treating, and a clear zinc plated finish.

Washer Fits:

• 2 in. Johnny Joints  (wide body)

Washer Includes:

• (1)  2 in. Johnny Joint safety washer

Washer Features:

• OD  =  1.625 in.
• ID  =  1.000 in., chamfered on both sides
• Thickness.  =  .115 in. (not including height of chamfered safety hub)
• Chamferring (of ID)  =  both sides
• Material  =  CNC machined 4140 chromoly, heat treated
• Finish  =  clear zinc plating

Notes:

• This washer's ID is for use with standard (wide) body 2 in. Johnny Joints only. Washers for narrow body 2 in. Johnny Joints can be found here
• Washer features a protruding hub on it's face that, once installed, lock the rings of the snap ring in place, preventing the snap ring from attempting to push inward under extreme load and escape
• Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
• *** IMPORTANT *** - joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!
